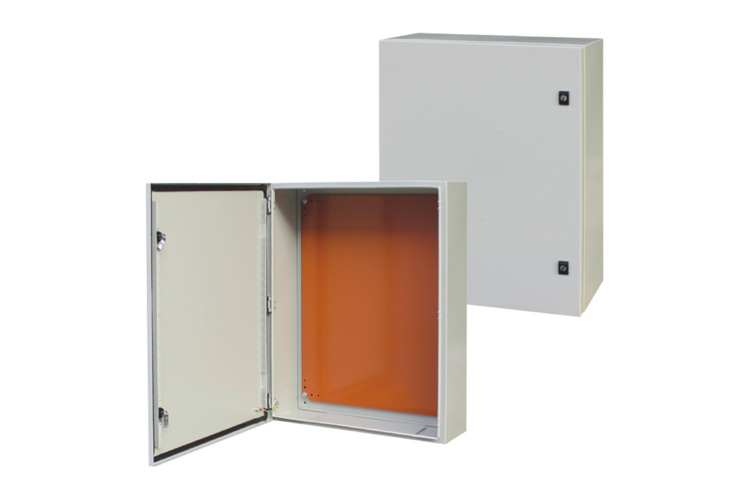

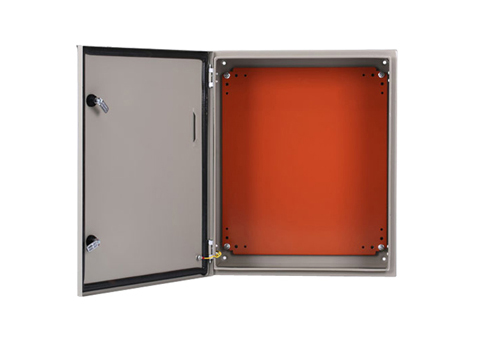

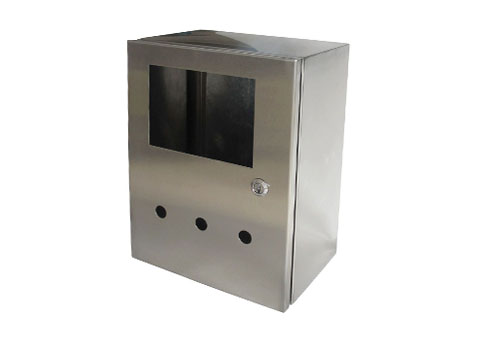

壁挂金属箱

将此页放入收藏夹

咨询热线：0577-61775611

传真：0577-61715611

产品详情

产品介绍

● 表面处理：聚酯环氧喷涂织纹状，具抗紫外线功能

● 安装版：镀锌板，不锈钢201/304/316

● 防护等级：IP66

● 材质：箱体及前门采用冷轧钢板，安装板采用镀锌钢板

● 颜色：RAL7032

● 抗冲击力等级：IK10

标准规格，其他规格需要定做

Model	H	W	D	厚度
Model	mm	mm	mm	Door/mm	Body/mm	M.P/mm
JXF2215	200	200	150	1.2	1.2	2
JXF2515	250	200	150	1.2	1.2	2
JXF2315	300	200	150	1.2	1.2	2
JXF25320	300	250	200	1.2	1.2	2
JXF3315	300	300	150	1.2	1.2	2
JXF3320	300	300	200	1.2	1.2	2
JXF3415	400	300	150	1.2	1.2	2
JXF3420	400	300	200	1.2	1.2	2
JXF3425	400	300	250	1.2	1.2	2
JXF4415	400	400	150	1.2	1.2	2
JXF4420	400	400	200	1.2	1.2	2
JXF4425	400	400	250	1.2	1.2	2
JXF4520	500	400	200	1.2	1.2	2
JXF4525	500	400	250	1.2	1.2	2
JXF4530	500	400	300	1.2	1.2	2
JXF5515	500	500	150	1.2	1.2	2
JXF5520	500	500	200	1.2	1.2	2
JXF5525	500	500	250	1.2	1.2	2
JXF4615	600	400	150	1.2	1.2	2
JXF4620	600	400	200	1.2	1.2	2
JXF4625	600	400	250	1.2	1.2	2
JXF5615	600	500	150	1.2	1.2	2
JXF5620	600	500	200	1.2	1.2	2
JXF5625	600	500	250	1.2	1.2	2
JXF5630	600	500	300	1.2	1.2	2
JXF6615	600	600	150	1.2	1.2	2
JXF6620	600	600	200	1.2	1.2	2
JXF6625	600	600	250	1.2	1.2	2
JXF4720	700	400	200	1.2	1.2	2
JXF4730	700	400	300	1.2	1.2	2
JXF5715	700	500	150	1.2	1.2	2
JXF5720	700	500	200	1.2	1.2	2
JXF5725	700	500	250	1.2	1.2	2
JXF6720	700	600	200	1.2	1.2	2
JXF6725	700	600	250	1.2	1.2	2
JXF6820	800	600	200	1.5	1.5	2
JXF6825	800	600	250	1.5	1.5	2
JXF6830	800	600	300	1.5	1.5	2
JXF6 1020	1000	600	200	1.5	1.5	2
JXF6 1025	1000	600	250	1.5	1.5	2
JXF6 1030	1000	600	300	1.5	1.5	2
JXF8 1020	1000	800	200	1.5	1.5	2
JXF8 1025	1000	800	250	1.5	1.5	2
JXF8 1030	1000	800	300	1.5	1.5	2
JXF6 1230	1200	600	300	1.5	1.5	2
JXF8 1220	1200	800	200	1.5	1.5	2
JXF8 1225	1200	800	250	1.5	1.5	2
JXF8 1230	1200	800	300	1.5	1.5	2
JXF10 1225	1200	1000	250	1.5	1.5	2
